AMM-P3 complete motorcycle schematic

What happens if you remove all those control boxes and associated wiring when upgrading to carburetor?

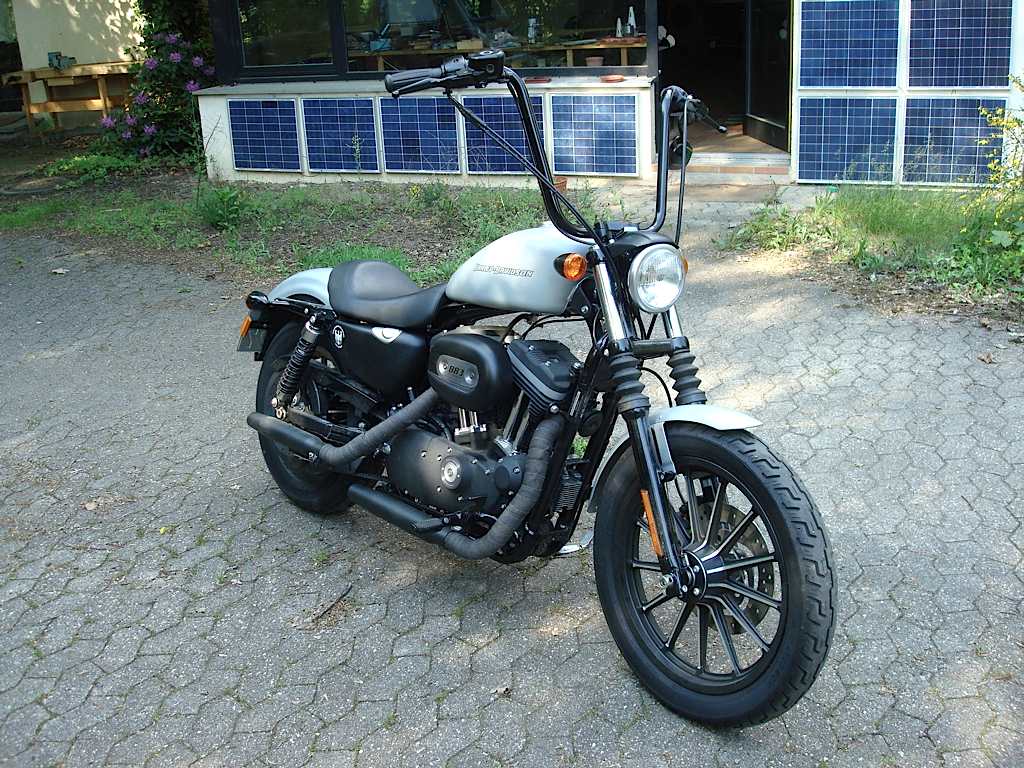

You get a clean bike:

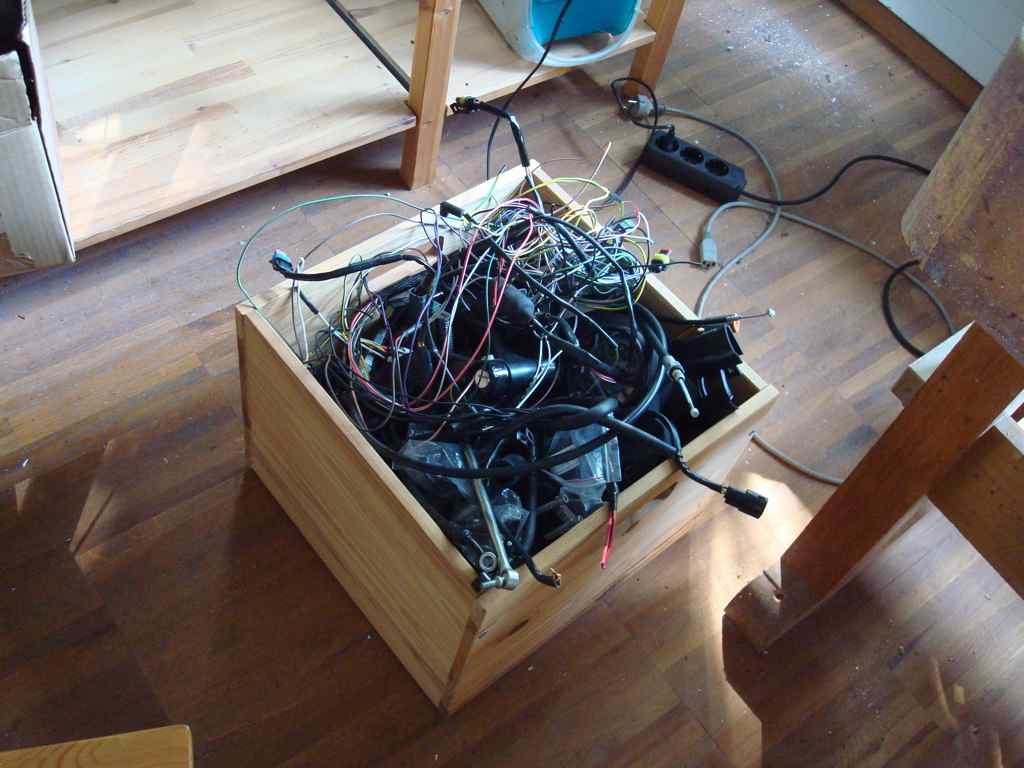

Plus a bucket full of crap:

Remaining electronics: AMM-P3, 2-terminal flasher relay (this works with the LED-flashers too) and a bicycle speedometer.

Click here for the complete wiring -> AMM-P3 complete motorcycle schematic

The result is a time machine, only couple years taken between the two shots, enjoy life ..
